Technical Specifications

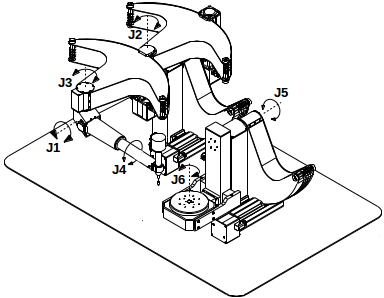

iso

System:

Total Height 1.29-1.43m (40 – 57 in)
Table Height 0.74-0.93m (29-30 in)
Width 1.2 m (47.2 in)
Length 0.8 m (32 in)
Surface Area 0.96 m2 (10.5 ft2)
System Weight 100 kg (220.5 lbs)

Part Capabilities:

Size 0.2 x 0.2 x 0.4 m (8x8x16 in)
Weight 11.3 kg (25 lbs)

Other:

Power 120 or 230 VAC
400 Watts
Air Requirements 620 kPa (90 psi)
Axes 6 (4 arm, 2 positioner)
Measuring & Positioning Repeatability ± 0.010 mm

Touch Robot drawing top and front views
